Invoking Open Match APIs

This guide covers how you can invoke Open Match APIs.

Open Match has a resource-based REST API that is served from HTTP and gRPC. It also complies with the OpenAPI (fka Swagger) API specification which means it’s easy to download the schema and generate clients in many different languages.

Open Match default hostnames and endpoints

The following defines the in-cluster hostnames and endpoints of Open Match’s external services. The corresponding Helm configurations used to generate these configs could be found here.

swaggerui:
  hostName: om-swaggerui
  httpPort: 51500
query:
  hostName: om-query
  grpcPort: 50503
  httpPort: 51503
frontend:
  hostName: om-frontend
  grpcPort: 50504
  httpPort: 51504
backend:
  hostName: om-backend
  grpcPort: 50505
  httpPort: 51505

Invoking Open Match gRPC APIs

We recommend using gRPC to talk to Open Match. The following is an example of an in-cluster program that creates a vanilla gRPC client to talk to Open Match Frontend and then calls frontend.CreateTicket method.

import (
  "fmt"
  "log"

  "google.golang.org/grpc"
  "open-match.dev/open-match/pkg/pb"
  "open-match.dev/open-match/pkg/structs"
)

func main() {
  // Create a gRPC frontend client
  conn, err := grpc.Dial("om-frontend:50504"), grpc.WithInsecure())
  if err != nil {
    log.Fatalf("grpc.Dial failed with %v", err)
  }
  defer conn.Close()
  feClient := pb.NewFrontendClient(conn)

  // Create an Open Match CreateTicketRequest with Open Match's public package
  sent := &pb.CreateTicketRequest{
    Ticket: &pb.Ticket{
      SearchFields: &pb.SearchFields{
        Tags: []string{"beta-gameplay"},
      },
    },
  }
  ticket, err := feClient.CreateTicket(sent)
  if err != nil {
    log.Errorf("feClient.CreateTicket failed with %v", err)
  }

  fmt.Println("Open Match assigned id %s to the ticket", ticket.GetId())
}

Invoking Open Match HTTP APIs

Open Match provides REST API for all of its external components using the grpc-gateway plugin. Below is a vanilla in-cluster Go program to interact with Open Match via its HTTP endpoint. Please see the Open Match’s API definitions for the latest HTTP endpoints each service is using.

import (
  "fmt"
  "net/http"
  "io/ioutil"

  "github.com/golang/protobuf/jsonpb"
  "open-match.dev/open-match/pkg/pb"
  "open-match.dev/open-match/pkg/structs"
)

func main() {
  var m jsonpb.Marshaler
  // The HTTP endpoint of frontend.CreateTicket API
  apiURL := fmt.Sprintf("http://om-frontend:%d/v1/frontendservice/tickets", 51504)
  // Create an Open Match CreateTicketRequest with Open Match's public package
  sent := &pb.CreateTicketRequest{
    Ticket: &pb.Ticket{
      SearchFields: &pb.SearchFields{
        Tags: []string{"beta-gameplay"},
      },
    },
  }
  payload, err := m.MarshalToString(&sent)
  if err != nil {
    log.Fatalf("m.MarshalToString(%#v) failed with %v; want success", payload, err)
  }
  // Send the Request to frontend.CreateTicket endpoint
  resp, err := http.Post(apiURL, "application/json", strings.NewReader(payload))
  if err != nil {
    log.Fatalf("http.Post(%q) failed with %v, want success", apiURL, err)
  }
  defer resp.Close()
  buf, err := ioutil.ReadAll(resp.Body)
  if err != nil {
    log.Errorf("ioutil.ReadAll(resp.Body) failed with %v; want success", err)
  }
  // Unmarshal the response to a Go struct
  var received *pb.Ticket
  if err := jsonpb.UnmarshalString(string(buf), received); err != nil {
    log.Errorf("jsonpb.UnmarshalString(%s, &msg) failed with %v; want success", buf, err)
  }

  fmt.Println("Open Match assigned id %s to the ticket", received.GetId())
}

Invoking Open Match APIs via the Swagger UI

You can view and talk to this API via the Swagger UI application that is deployed with your Open Match cluster.

Google Kubernetes Engine

If your cluster runs on GKE you can access the tool from your cluster using a Public IP address. Go to Cloud Console > Kubernetes Engine > Services & Ingress and look for om-swaggerui. In that row, there’s a link to view the API browser.

Locally

The Swagger UI is accessible from your cluster via port 51500. Kubernetes’s virtual network is by default private so you’ll need to add a proxy to communicate with it.

# Open the port to the pod so that it can be accessed locally.
kubectl port-forward --namespace open-match service/om-swaggerui 51500:51500

From there you can access the proxy from http://localhost:51500.

Using the Swagger UI

Swagger UI is a generic tool for viewing APIs and interacting with them. Open Match has many APIs but the default one is the Frontend.

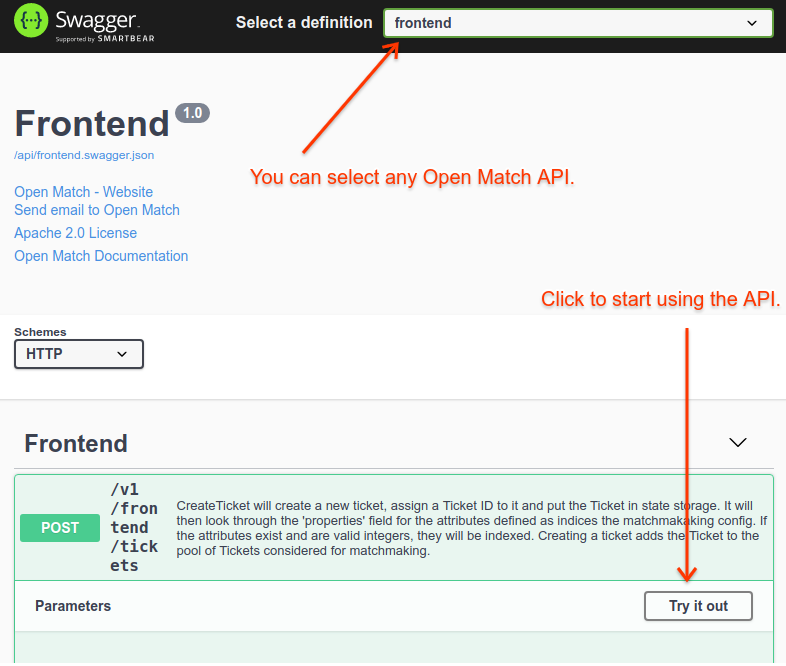

Swagger UI for Open Match

By clicking on a function you can see the schema of the API. To call an API click Try it out and then fill in body and then select Execute. You’ll then see the HTTP code and response.

Disable Swagger UI

For security purposes you will want to disable the Swagger UI application by setting --set open-match-core.swaggerui.enabled=false in the helm command or add the following YAML to your values.yaml.

open-match-core:
  swaggerui:
    enabled: false
